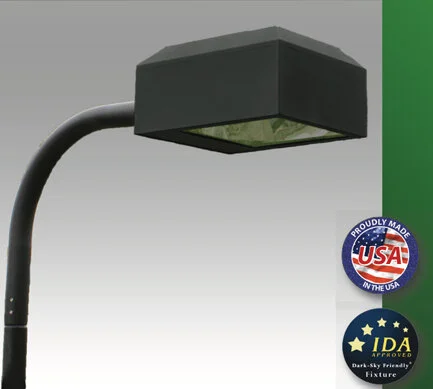

Vertical Burn Tennis Light

Features & Specifications Applications

The new Vertical Burn Lighting High Performance Series lu-
minaires are designed as a superior lighting solution for tennis courts utilizing the most efficient technology available.

Construction
The fixture housing is constructed of durable formed aluminum with all seams expertly welded and sealed to withstand the harshest of environments. The lens is sealed in place and a door gasket is provided for weather-tight protection.

Finish
Our Super Durable Polyester powder coat finish is backed by a five year finish warranty. Standard colors are US Tennis

Optical System
State of the art Enhanced High Performance Reflector uses specular faceted high gloss components and a tempered flat lens which utilizes the highest light transmission glass technology for the best performing optics in the industry today.
The lamp in oriented vertically for maximum efficiency and life. The optical system meets full cutoff requirements.

Ballast
Ballasts are available in multi-tap and 480volt. A full range of wattages are available to suit each individual need. All high efficiency ballast’s are pre-wired for your convenience.

Listing
ETL listed suitable for wet locations.

Warranty
Five year warranty on the fixture and finish, one year on the ballast and lamps.
