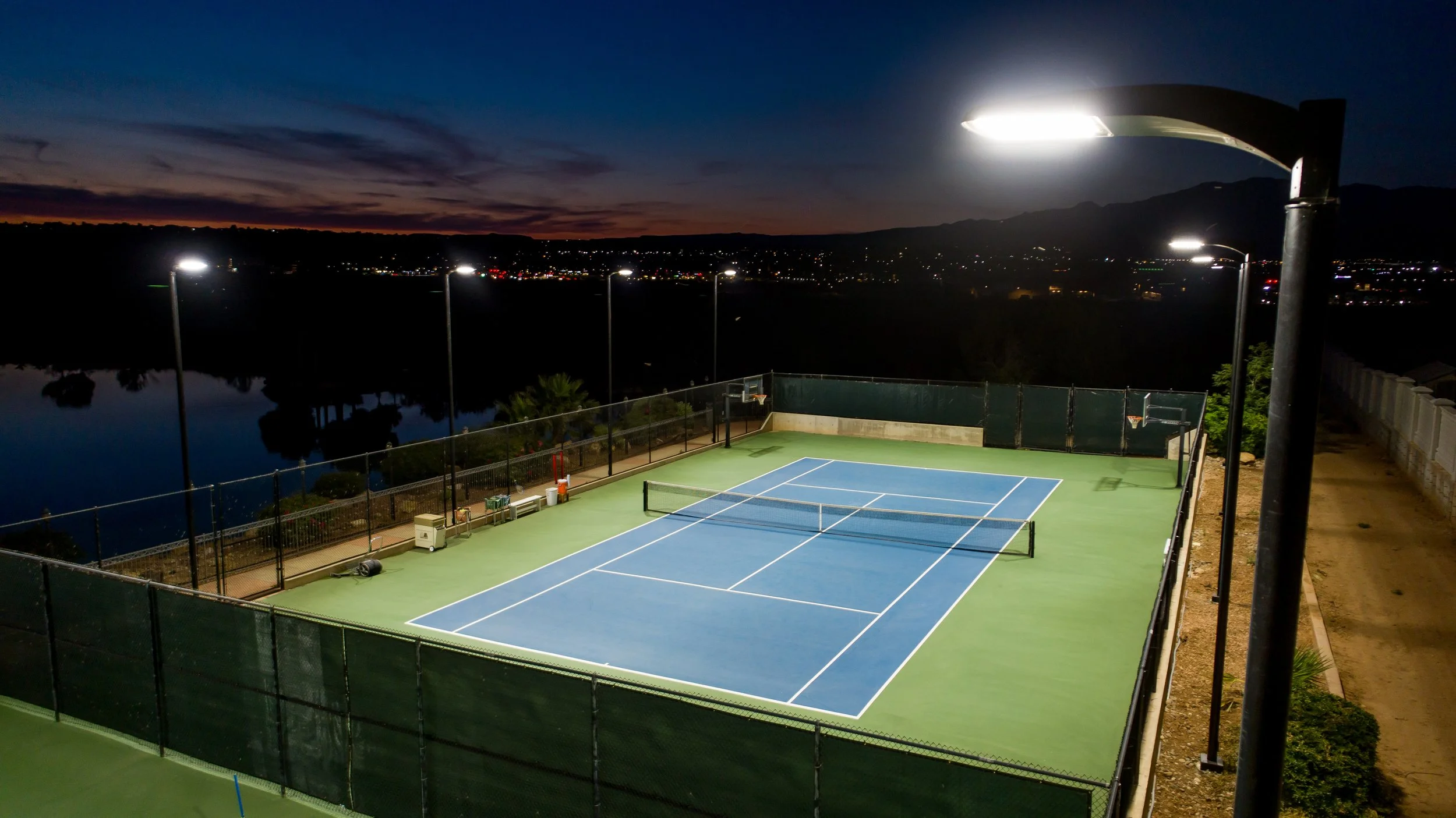

LED Outdoor Tennis Light

LED Outdoor Zone

Electrical

• High-performance driver features overvoltage, under-voltage, short-circuit and over temperature protection.

• 0-10V dimming (10% - 100%) standard

• Standard Universal Voltage (120-277 VAC) Input 50/60 Hz or optional High Voltage (347-480 VAC).

• Total harmonic distortion: <20%

• Operating temperature: 50L and 60L 40°C to +50°C (-40°F to +122°F). 65L and 78L: -40°C to +40°C (-40°F to +104°F)

•  Power factor: >.90

• Input power stays constant over life.

• Field replaceable 10kV surge protection device meets a minimum Category C Low operation (per ANSI/IEEE C62.41.2).

• High-efficacy LEDs mounted to metal-core circuit board to maximize heat dissipation

• Driver is fully encased in potting material for moisture resistance and complies with FCC standards. Driver and key electronic components can easily be accessed.

LED Outdoor Court Blade

SMARTTEC™ – LSI drivers feature integral sensor which reduces drive current, when ambient temperatures exceed rated temperature.

ENERGY SAVING CONTROL OPTION – DIM - 0-10 volt dimming enabled with controls by others.

EXPECTED LIFE – Minimum 60,000 hours to 100,000 hours depending upon the ambient temperature of the installation location. See LSI web site for specific guidance.

LEDS – Select high-brightness LEDs in Cool White (5000K), or Neutral White (4000K) color temperature, 70 CRI.

HOUSING – One-piece, die-formed aluminum housing contains factory prewired driver in a gasketed, weather-resistant wiring compartment. Hinged wiring access door (with safety lanyard) located underneath. Fixture is IP65 rated.

OPTICAL UNIT – Clear tempered optical-grade flat glass lens permanently sealed to weathertight aluminum optic frame (includes pressure-stabilizing breather).

MOUNTING – The fixture is furnished with installed stainless steel, threaded mounting studs protruding from the rear of the housing. Stainless steel nuts and washers used to secure the fixture to the bracket are also included.

COLORS

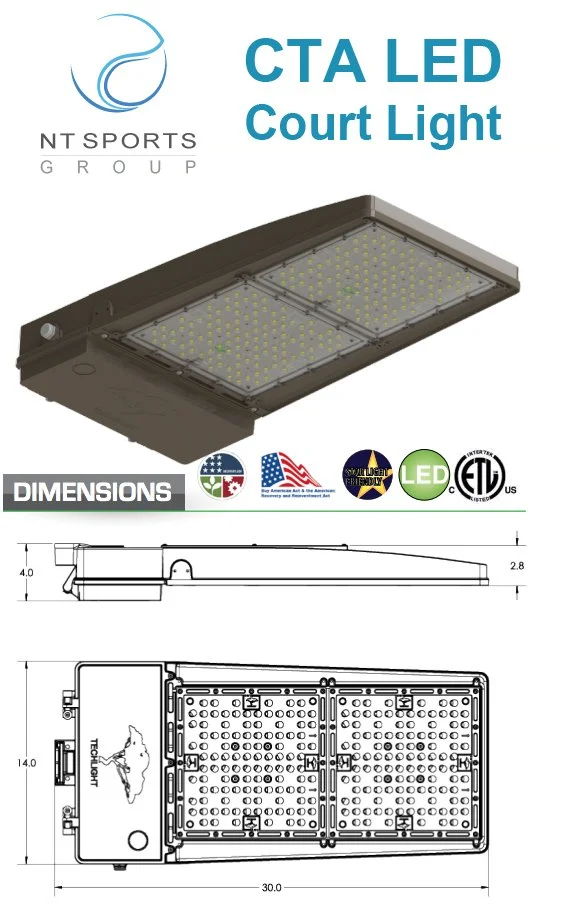

Features & Specifications Applications

The high lumen output luminaire is designed to be a replacement for HID fixtures up to 1000W. It is optimal for lighting applications where long life, low maintenance, and consistent color rendering is required.
Areas with limited accessibility due to fixture location or where heavy pedestrian or vehicle traffic makes maintenance difficult are ideal applications. The high wattage/lumen output allows the fixture to be used for parking, restaurant, quick service, shopping centers or sports lighting applications.

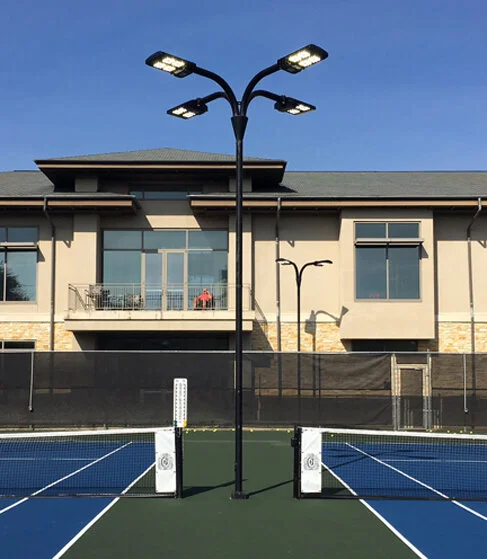

Construction

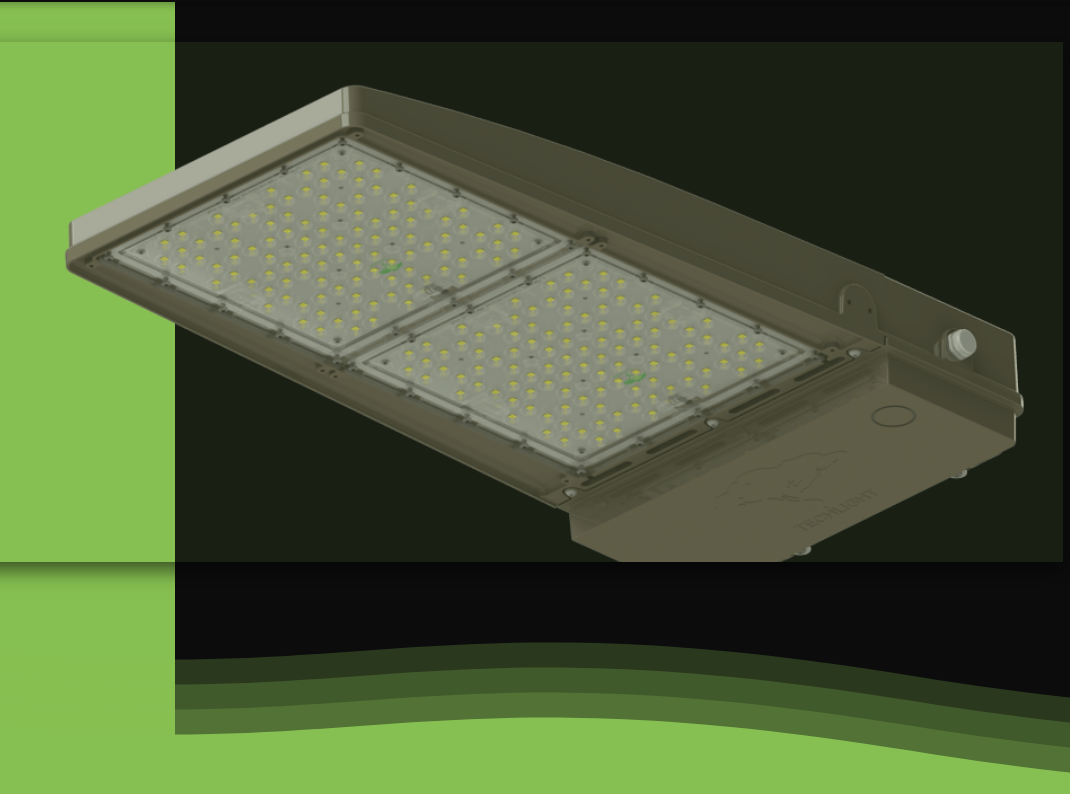

The heavy duty housing is constructed of cast aluminum with heat dissipating fins. The optical assemblies are sealed in place using a silicone gasket for weather tight protection. Modular LED system for ease of maintenance. ETL listed for wet locations (IP64). Additional IP66 rating available upon request. Each fixture comes standard with preps to accomodate advanced wireless control, management and reporting systems for outdoor lighting.

Finish
Made with a state of the art UV stabilized acrylic high performance refractive optical assemblies that use high transmicity materials to achieve precise photometric distributions. Available in Type II, III, IV Automotive,
Automotive Frontline Wide, IV Tennis, V Medium and V Wide beam configurations. Star Light Friendly (meets or exceeds Dark Sky requirements)in the horizontal position.

Optical System
State of the art Enhanced High Performance Reflector uses specular faceted high gloss components and a tempered flat lens which utilizes the highest light transmission glass technology for the best performing optics in the industry today. The lamp in oriented vertically for maximum efficiency and life. The optical system meets full cutoff requirements.

Electrical System - Available in up to a 8 brick LED system in 5000K Cool White (+/- 500K), 5000K-90 CRI, or 4100K Neutral White color temperatures propagated with Philips Lumileds LUXEON® M LED's. Available with 100-300V 50/60 Hz Class II power supply. LED's rated for over 118,000 hours at 25°C ambient temperature. 480V and 347V input option available. 0-10V dimming. Built-in surge protection up to 10 kV. Built-in Active PFC Function >95%/Full load. LED Power Supply conforms to UL8750 standards and is
IP65 rated for wet locations.

Electrical System - The fixture was designed to utilize an innovative die cast decorativ earm that allows the fixture to easily mount to almost any existing bolt pattern or new pole. Additional mounting options include a 2" adjustable slip fitter for tenon mounting (for use as a downlight only). Additional mounting options may be available for custom applications. LISTINGS LED Power Supply listed for wet locations (IP65). LED bricks ETL listed for wet locations (IP64). Meets US and Canadian safety standards.
-40°C to 50°C ambient operation. RoHS Compliant.

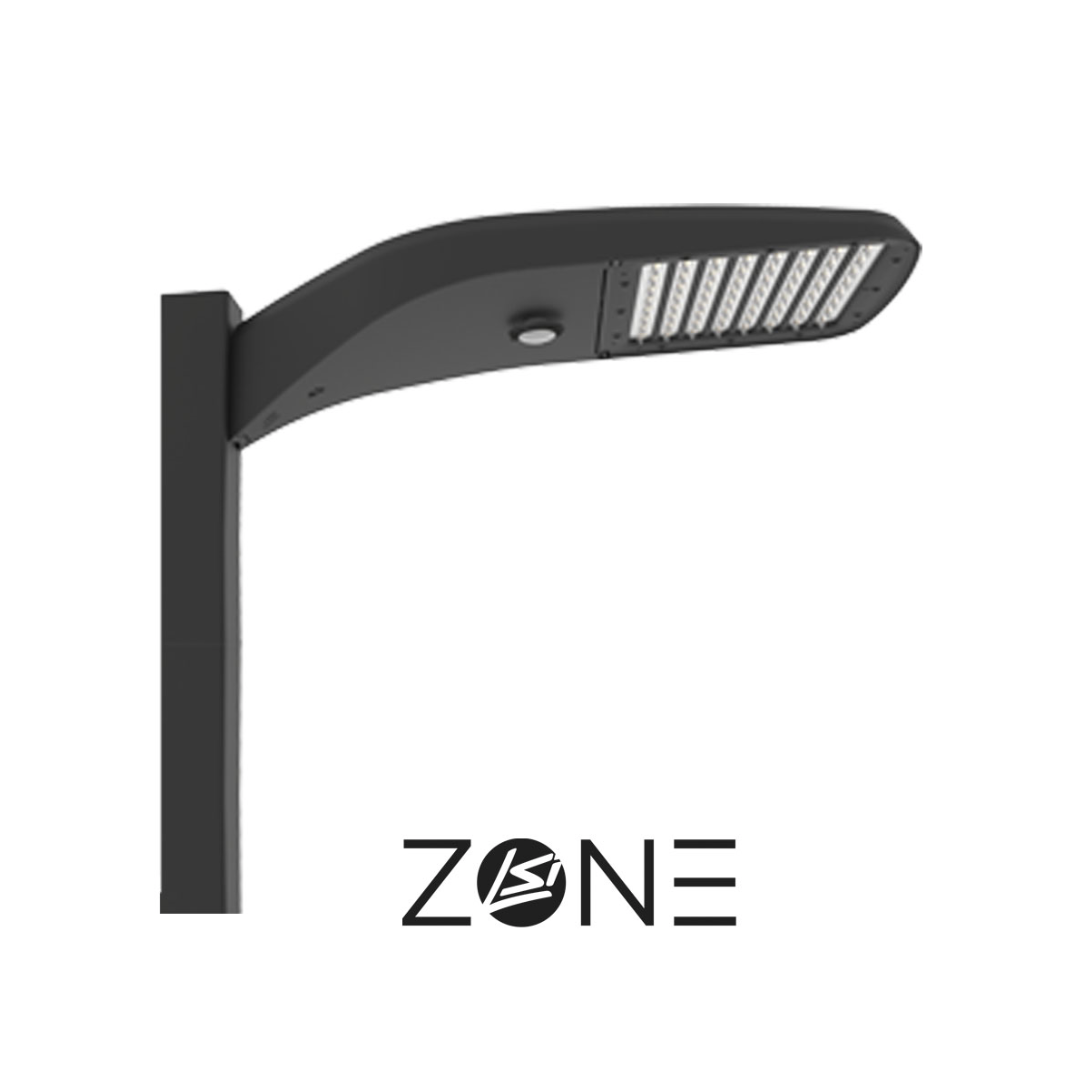

LSI’s ZONE™ LED sports light is a game changer for court lighting applications. ZONE features a sleek low profile design and high performance LEDs paired with precise silicone optics to produce superior levels of illumination and uniformity. Compared with typical HID court lighting systems, the energy load is reduced by up to 75%.

Features & Specifications Applications

Industry-leading photometry through LSI’s exclusive new molded silicone optical system

• Contemporary, sleek, low-profile styling

• 3-pc. Die-cast aluminum housing

• Factory Rotatable Optics

• Optional Integral Bluetooth™ Motion and Photocell Sensor

• 5-year Warranty

• MAX LUMENS

  78,000

  MIN LUMENS

  50,000

  SENSORS

  Standalone Motion/PhotocellWireless Motion/Photocell

  COLOR TEMPERATURES

  5000 4000 3000

Construction

• Rugged die-cast aluminum housing contains factory prewired driver and optical unit. Cast aluminum wiring access door located underneath.

• Fixtures are finished with LSI’s DuraGrip®polyester powder coat finishing process. The DuraGrip finish withstands extreme weather changes without cracking or peeling. Other standard LSI finishes available. Consult factory.

Optical System

• State-of-the-Art one piece silicone optic sheet delivers industry leading optical control with an integrated gasket to provide IP66 rated seal.

• Proprietary silicone refractor optics provide exceptional coverage and uniformity in distribution types 2, 3, 5W, FT, FTA and AM.

• Silicone optical material does not yellow or crack with age and provides a typical light  transmittance of 95%.

• Zero uplight.

• Available in 5000K, 4000K, and 3000K color temperatures per ANSI C78.377.

• Minimum CRI of 70

• Integral louver (IL) and house-side shield (IH) options available for improved backlight control without sacrificing street side performance.

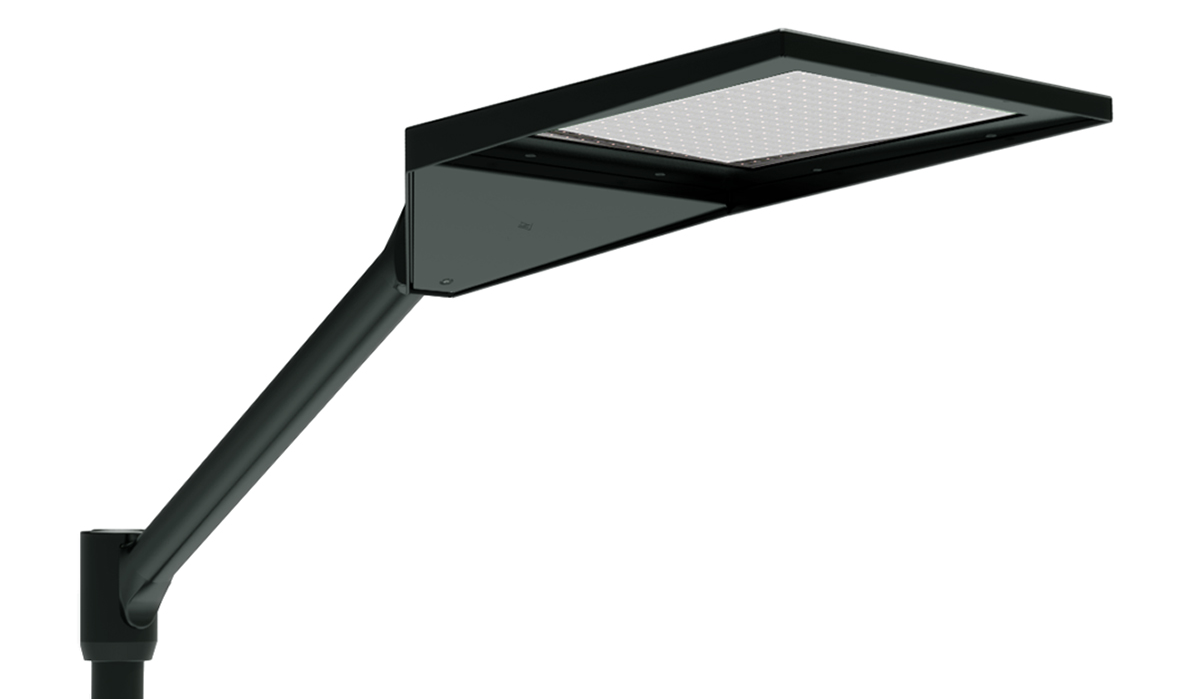

LSI’s CourtBlade LED sports light is a game changer for court lighting applications. The low profile CourtBlade utilizes high performance LEDs and precise optics to produce superior levels of illumination and uniformity. Compared with typical HID court lighting systems, the energy load is reduced by 50%.

LSI’s CourtBlade LED sports light is DLC qualified, has a less than 3” thick low profile, and a sharp cutoff forward throw distribution. With a 0-10V dimming down to 1% and virtually maintenance free, this product has a 5-year warranty.

Features & Specifications Applications

MAX LUMENS

59,000

MIN LUMENS

56,000

COLOR TEMPERATURES

4000 5000

ELECTRICAL – Two-stage surge protection (including separate surge protection built into electronic driver) meets IEEE C62.41.2-2002, Location Category C. Available with universal voltage power supply 120-277VAC (50/60Hz input) and 347-480 VAC.

DRIVER – Available in HO (High Output) drive current. Components are fully encased in potting material for moisture resistance. Driver complies with FCC standards. Driver and key electronic components can be easily accessed.

FINISH – Fixtures are finished with LSI’s DuraGrip® polyester powder coat finishing process. The DuraGrip finish withstands extreme weather changes without cracking or peeling.
