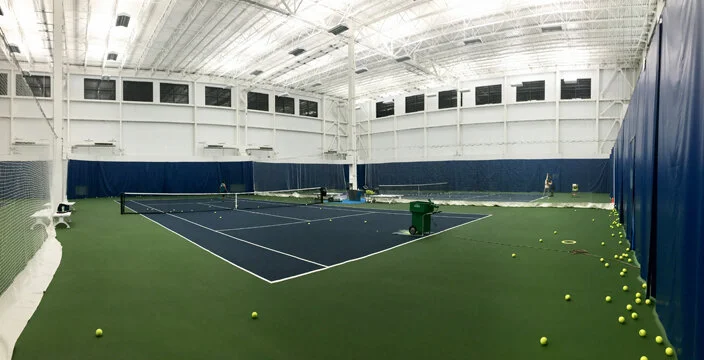

LED Indoor Tennis Light

FEATURES & SPECIFICATIONS APPLICATIONS

Optical System

• High transmission impact-resistant Clear Acrylic lenses

• Available in 4000K, 5000K color tempera- tures

• Minimum CRI of 80

• Specifically designed for glare-free lighting in sports venues

Electrical

• 0-10V dimming (10%-100%) standard

• Standard Universal Voltage (120-277 VAC) Input 50/60 or optional High Voltage (347 VAC)

• L70 Calculated Life: >100K hours

• Total Harmonic Distortion: <20%

Operating Temperature -40C to +55C (-40F to +131F)

• Power factor: >0.95

Construction

Constructed of 22 gauge die-formed steel with a post-paint polyester coat finish and rigid aluminum heat sinks

• Access panel provides hinged access to wiring and driver connections

• Housing is treated with a phosphate rust inhibitor and painted with textured high-re- flectance white (minimum 92%) powder coat.

Installation

• Mounting options include Hook Cable Hangers (HCH10) and optional Single Hub/ Chain Mount (SHC)

• Standard cord is a 15ft 16/5 SOOW wire

Listings

• Listed to UL 1598 and UL 8750

• RoHS Compliant

• Suitable for damp locations

• Meet Buy American Act Requirements

OVERVIEW

Lumen Range 60,000 - 80,000

CCT 4000K, 5000K

Wattage Range 428 - 550

Efficacy Range (LPW) 135 - 148

Weight lbs (kg) 25.6/29.8 (11.6/13.4)

DELIVERED LUMENS

Lumen Package LED Generation Lens Type CRI

60L 2LEDSE CA 80

80L 2LEDSE CA 80

4000K CCT 5000K CCT

Delivered Lumens Efficacy Delivered Lumens Efficacy Wattage

57552 135 57552 135 428

76755 140 76755 140 550
